| Model No | SSG2510 | SSV2510G | SSV2510GNB | ||
| Image Format Cover | 1/3" ～ 1/4" | ||||
| 焦点距离 | 2.5 ～ 10 mm | ||||
| MAX光圈比率 | 1 : 1.4 | ||||
| Zoom Ratio 变焦倍数 | 4.0倍 | ||||
| Iris光圈 | Control Method | 手动 | 视频驱动 | 直流驱动 | |
| Iris Range | F1.4 ～ Close | F1.4 ～ 360 | |||
| 速度 | * * * | Approx. 1.5 sec | * * * | ||
| Input Voltage & Current | * * * | DC 8 ～ 16V Max. 30mA | * * * | ||
| Sensitivity Adjustment | * * * | 0.5 ～ 1.0VP-P | * * * | ||
| Focus 焦点 | 控制方式 | 手调 | |||
| Zoom 变焦 | 控制方式 | 手调 | |||
| 视角 (D×H×V) |
1/4 inch | Wide | 99.2° × 79.5° × 59.6° | ||
| Tele | 26.6° × 21.3° × 16.0° | ||||
| 1/3 inch | Wide | 130.9° × 105.8° × 79.5° | |||
| Tele | 35.3° × 28.3° × 21.3° | ||||
| 1/2 inch | * * * | ||||
| 1 inch | * * * | ||||
| Minimum Object DistanceMIN可视距离 | 0.3 m | ||||
| Back Focal Length 后焦长度 | 9.52 ～ 21.05 mm | ||||
| Effective Diameter | Front 前部 | φ26.9 mm | |||
| Rear 后部 | φ8.3 mm | ||||
| Filter Screw size | * * * | ||||
| Mount | CS / 12.5mm | ||||

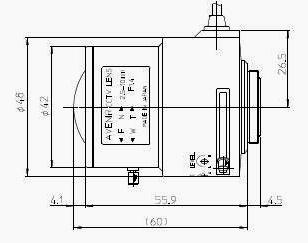

| Mechanical Dimension(D×L)机械尺寸 | φ48mm × 60mm | φ48mm × 50.5mm × 60mm | |||
| Weight重量 | 80.8g | 80.5g | 78.8g | ||
| 应用温度环境 | -10°C ～ +50°C (+14°F ～ +122°F) | ||||
